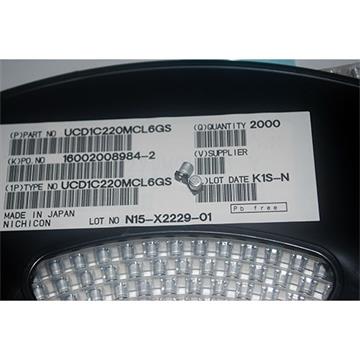

型号：UCD1C220MCL6GS

规格

产品属性 属性值 搜索类似

制造商: Nichicon

产品种类: 铝质电解电容器-SMD

RoHS:  详细信息

产品: Low Impedance Electrolytic Capacitors

电容: 22 uF

电压额定值 DC: 16 VDC

容差: 20 %

最小工作温度: - 55 C

最大工作温度: + 105 C

直径: 4 mm

长度: 5.8 mm

高度: 4.3 mm

引线间隔: 1 mm

寿命: 2000 Hour

纹波电流: 90 mA

系列: UCD

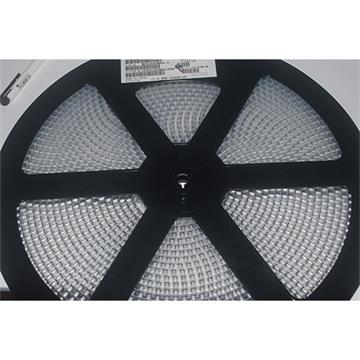

封装: Cut Tape

封装: MouseReel

封装: Reel

端接类型: SMD/SMT

类型: Chip Type, Low Impedance

商标: Nichicon

漏泄电流: 3 uA

损耗因数 DF: 0.16

产品类型: Electrolytic Capacitors

工厂包装数量: 2000

子类别: Capacitors

单位重量: 130 mg
